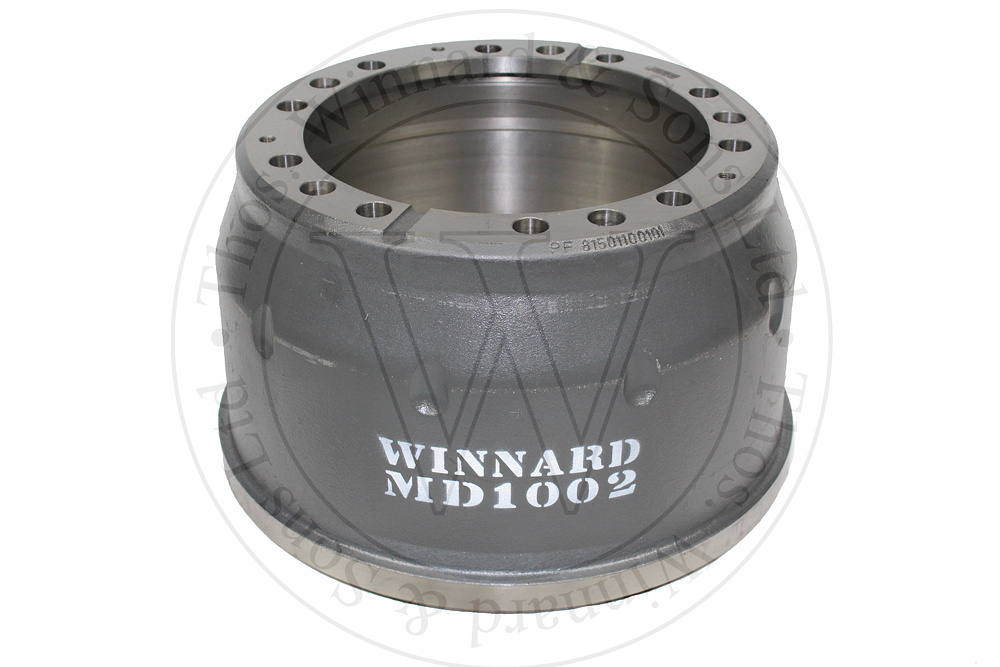

⇠ MD1002
Notes
- 5x23mm Hub reduction holes
Specification
| mm | inch | |
|---|---|---|
| (A) DIAMETER: | 410 | 16.14 |
| (B) TREAD DEPTH: | 190 | 7.48 |
| (C) REGISTER: | 298 | 11.73 |
| (D) HEIGHT: | 280 | 11.02 |
| (E) PCD: | 335 | 13.19 |
| (F) STUD HOLE DIAMETER: | 23 | 0.91 |
| (F) STUD HOLE QTY: | 10 | |
| EXTRA HOLES: | 5x23 3T | |
| WEIGHT | 47.95 kg |
Cross References
| OEM: | 81.50110.0101, 81.50110.3101, 81501100101, 81501100134, 81501100241, 81501103101, 81501109101 |
| 3G: | BD4200 |
| ALT REF: | 2410002, 31172003300, 9506373, CV20206001, CWD312, MN1616, MN2110 |
| APEC: | DRM7029 |
| BORG & BECK: | BBR32520 |
| DT: | 3.62000, 4.62952 |
| EUROPART: | 2072 410 002 |
| JURID: | 321828J |
| MERITOR: | MBD1104 |
| NAPA: | NTDR7029 |
| PE: | 036 402 00, 036.402-00 |
| ROADLINK: | 1361 |
| SAM REV: | MN1616 |
| TRUCKTEC: | BR1029 |
| TTC: | 80206, 80206 |
| UNIVERSAL: | C3400 |
| WINNARD OLD P/N: | MAN1002, MN1002 |
