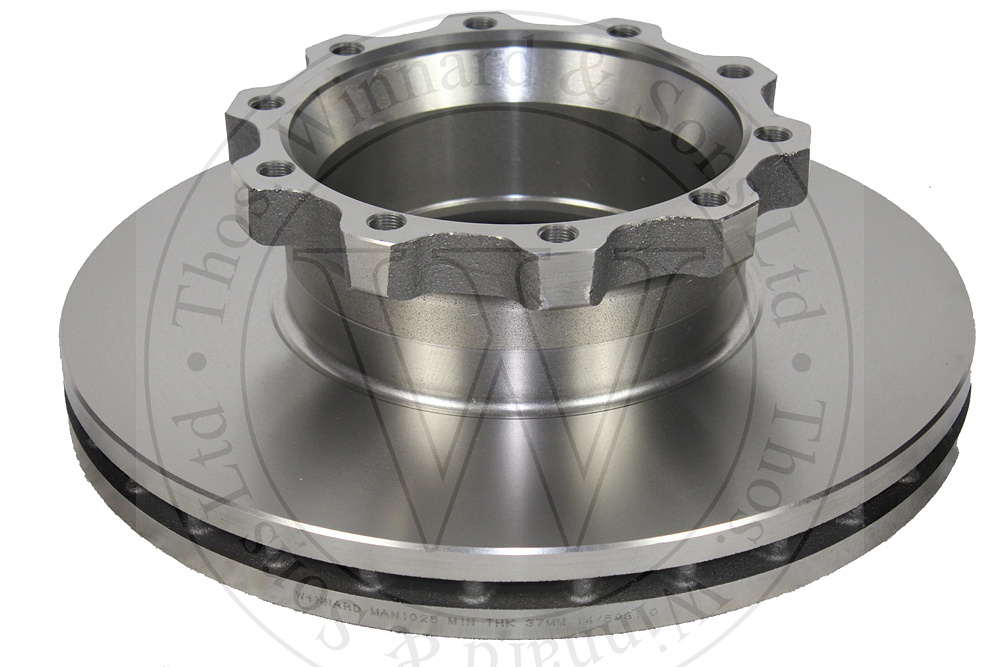

⇠ MD1025

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Specification

	mm	inch
(A) DIAMETER:	432	17.01
(B) MINIMUM THICKNESS:	37	1.46
(B) THICKNESS:	45	1.77
(C) REGISTER:	208	8.19
(D) HEIGHT:	135	5.31
(E) PCD:	235	9.25
(F) STUD HOLE DIAMETER:	M16
(F) STUD HOLE QTY:	10
BOX HEIGHT:	155	6.10
BOX LENGTH:	452	17.80
BOX WIDTH:	452	17.80
ECE R90:	APPROVED
WEIGHT	37.00 kg

Cross References

BARCODE GTIN-13:	5055677301535
OEM:	- SOLID VERSION AVAILABLE MD1025S, 51508030041, 81.50803.0021, 81.50803.0041, 81.50803.0047, 81.50803.3041, 81508030021, 81508030041, 81508030047, 81508033041, KNORR K069333, NEW FLYER 6359347, NEW FLYER 6359347NFA
3G:	AD1165, AD1165G
ALT REF:	03612200, 09946710, 1137988, 11411, 31672001100, 31672001190, 360204200133, 43914, 44F3316, 44F3316, 44F3316, 481845, 48222, 51090, 567406, 567410, 77717472, 93506484, 955775, CF104663, CSD17A29, CWD1002, II37988, II379881, II37988M, NCA61882, PL12801, WDR5068
APEC:	DSK7013
ATP:	115-0032-19
BENDIX:	567406B
BORG & BECK:	BBD32615
CEI:	215.083, 215083
COMLINE:	ADC9053V
DON:	CVD544
DT:	3.62050
DURABRAKE:	76616
EBS:	28.26.1001
EFI:	ECD147
FEBI:	11411
FERODO:	FCR160A, FCR215A
FRAS-LE:	FHDI00040
GRANNING:	14123
GRANTEX:	251.45.0008, 251450008
ISOTECH:	601025V
JURATEK:	MAN107, MD107
JURID:	567406J, 567410J
MARATHON:	RB057
MERITOR:	MBR5035, MBR5036, MBR5068
MIDLAND:	MPBR76616
NAPA:	NTBD7013
PE:	036.122-00A, 036.122-00A
PROLEAD:	481845
REPLACES:	ER1021, MAN1020
ROADLINK:	2010, 3190
SAM REV:	1609MN, 1640MN
SAUER:	S0790504120
SBP:	02-MA05
TEMPLIN:	03.110.0922.100
TEXTAR:	93087000
TODD:	8060016
TRP:	1962306
TRUCKTEC:	BD1013
TRW:	DF5019S
TTC:	80343, 80343
UNIVERSAL:	KLTE0155
VALEO:	187076
WEBB:	56020P
WINNARD OLD P/N:	MAN1025, MN1025
ZIMMERMANN:	360.6391.00
