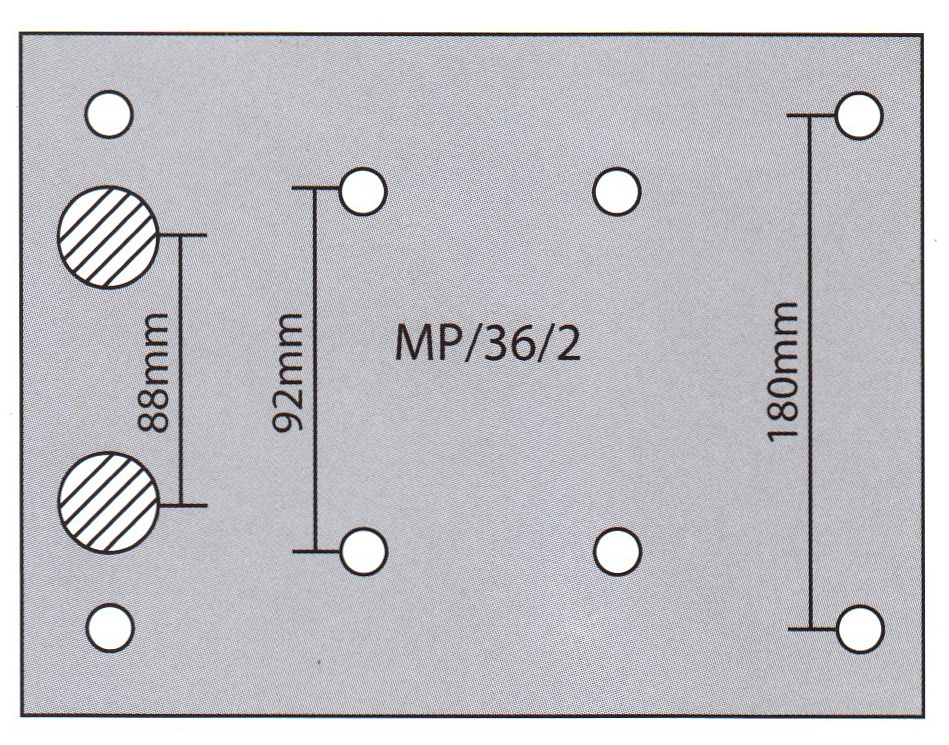

Specification

mm inch
(A) DIAMETER: 410 16.14
MP/36/2 INTERNAL RADIUS: 200 7.87
MP/36/2 LENGTH: 192 7.56
MP/36/2 No. OF RIVETS: 64 2.52
MP/36/2 QUANTITY PER SET: 8 0.31
MP/36/2 RIVET SIZE: 8x18
MP/36/2 THICKNESS: 17.0/11.8
MP/36/2 WIDTH: 220 8.66
WEIGHT 9.20 kg

Cross References

OEM: 305 423 0310, 305 423 0910, 3054230310, 3054230410, 3054230910, 3054231010, 4230523, 4230530, 4230630, 6174230030, 6174230530, 61742306300, 6174233111, 6174233211, 6174233411, 6174235510, 6174235511, 6174235610, 6174235710, 6174235711, 6174236210, 6174237510, 6174237610, 6174237710, 6174237910, 6174238010, 6174238110, 6174239510, 6174239610, 6174239710, 6524231610, 6524231710, 6524231810, 659 423 2810, 6594230410, 6594231210, 6594231410, 6594232010, 6594232110, 6594232120, 6594232210, 6594232910, 6594233610, 6594233710, 6594233810, 6594233910, 81.50221.6102 S, 81502006828, 81502007260, 81502200353, 81502200632, 81502200644, 81502200647, 81502200661, 81502200662, 81502200663, 81502200713, 81502200715, 81502200717, 81502200911, 81502200913, 81502200917, 81502210003, 81502210165, 81502210167, 81502210223, 81502210420, 81502210445, 81502210446, 81502210447, 81502210485, 81502210530, 81502210531, 81502210532, 81502210591, 81502210596, 81502210623, 81502210649, 81502210650, 81502210651, 81502210678, 81502210681, 81502210684, 81502210780, 81502210813, 81502210814, 81502210815, 81502210817, 81502210819, 81502210820, 81502210825, 81502210859, 81502210860, 81502210861, 81502210864, 81502210865, 81502210866, 81502210912, 81502210913, 81502210914, 81502210921, 81502210926, 81502210927, 81502210977, 81502210978, 81502216081, 81502216082, 81502216083, 81502216101, 81502216102, 81502216103, 81502216117, 81502216135, 81502216146, 81502216147, 81502216156, 81502216157, 88502200024, 88502200040, 88502200041, A0004230523, A0004230530, A0004230630, A3054230310, A3054230910, A617 423 0130, A617 423 6210, A617 423 9510, A6174230030, A6174230130, A6174230530, A6174230630, A6174233111, A6174233411, A6174235510, A6174235511, A6174236210, A6174237510, A6174237910, A6174239510, A6174239610, A6174239710, A659 423 1310, A659 423 3610, A659 423 3710, A6594230410, A6594231210, A6594231310, A6594232010, A6594232120, A6594232810, A6594232910, A6594233610, A6594233710, A6594233810, A6594233910, A6864230030, A6864230130, A9644230110, B2097153
ABEX: B2097, B4097, B6097
ALT REF: 1949600, 1949605380, 1949625380, 6174237910, 6594230410, 6594231210, 6594232010, 6594232710, MP 36/2
ALTREF: MP 36 2
BERAL: 194961700008
DT: 4.91133, 4.91137
FERODO: K19488.0, K19488.1
MERITOR: MBLK2210
REPLACES WINNARD: MP/36/2E
TEXTAR: 1949602, 1949604, 1949607, 1949609, 1949612
WVA: 19476, 19488, 19496
