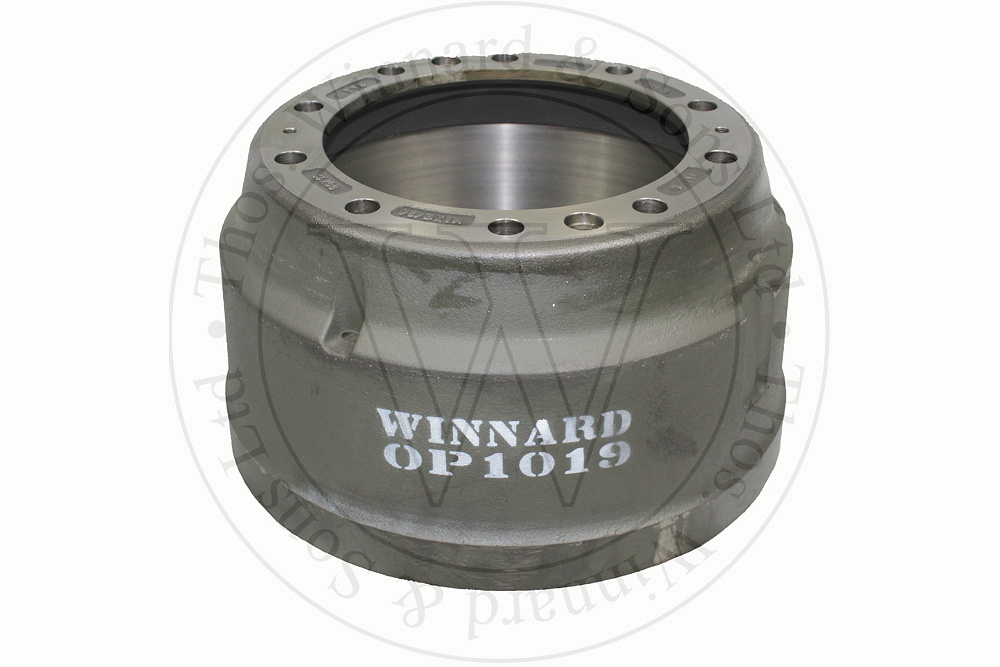

⇠ OP1019

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Notes

THIS DRUM CAN BE SUPPLIED BUT WE WILL REQUIRE A MINIMUM ORDER OF 10 PCS. LEAD TIME IS AROUND 60 DAYS.

Specification

	mm	inch
(A) DIAMETER:	420	16.54
(B) TREAD DEPTH:	190	7.48
(C) REGISTER:	282	11.10
(D) HEIGHT:	270	10.63
(E) PCD:	335	13.19
(F) STUD HOLE DIAMETER:	24	0.94
(F) STUD HOLE QTY:	10
EXTRA HOLES:	2CB2T
WEIGHT	55.80 kg

Cross References

OEM:	1IK24H, 25060064, 5083337
3G:	BD8085
ALT REF:	TAR1019
UNIVERSAL:	C4238
