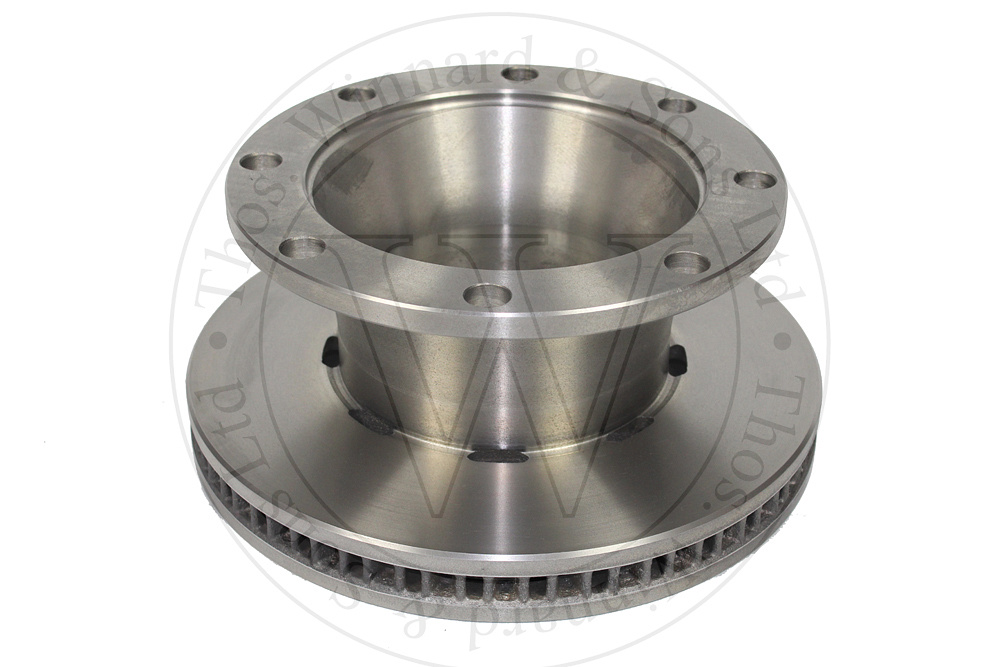

⇠ RN1037

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Specification

	mm	inch
(A) DIAMETER:	375	14.76
(B) MINIMUM THICKNESS:	38	1.50
(B) THICKNESS:	45	1.77
(C) REGISTER:	222	8.74
(D) HEIGHT:	166	6.54
(E) PCD:	275	10.83
(F) STUD HOLE DIAMETER:	22.5	0.89
(F) STUD HOLE QTY:	8
BOX HEIGHT:	186	7.32
BOX LENGTH:	395	15.55
BOX WIDTH:	395	15.55
WEIGHT	30.00 kg

Cross References

BARCODE GTIN-13:	5055677302266
OEM:	5010525015, 5010525362
3G:	AD1281
ALT REF:	2100046, 31685001100, 360204200156, 40-43684, 43684, 481836, 51094, 9507152, 96524, NCA98637
CEI:	215.102, 215102
COMLINE:	ADC9162V
DON:	CVD604
DT:	6.61011
EBS:	28.28.1005
FEBI:	29172
FERODO:	FCR220A
ISOTECH:	101037V
JURATEK:	REN114
KNORR BREMSE :	K184828N50
MERITOR:	MBR5115
PROLEAD:	481836
ROADLINK:	3201
SAM REV:	187RL
SAMPA:	077.039
SBP:	02-RV013
TEMPLIN:	03.110.4255.140, 031104255140
TEXTAR:	93192300
TODD:	8044106
TRP:	1962321
TTC:	61843
UNIVERSAL:	C4246
VALEO:	187092
ZIMMERMANN:	470.6613.00
