Notes

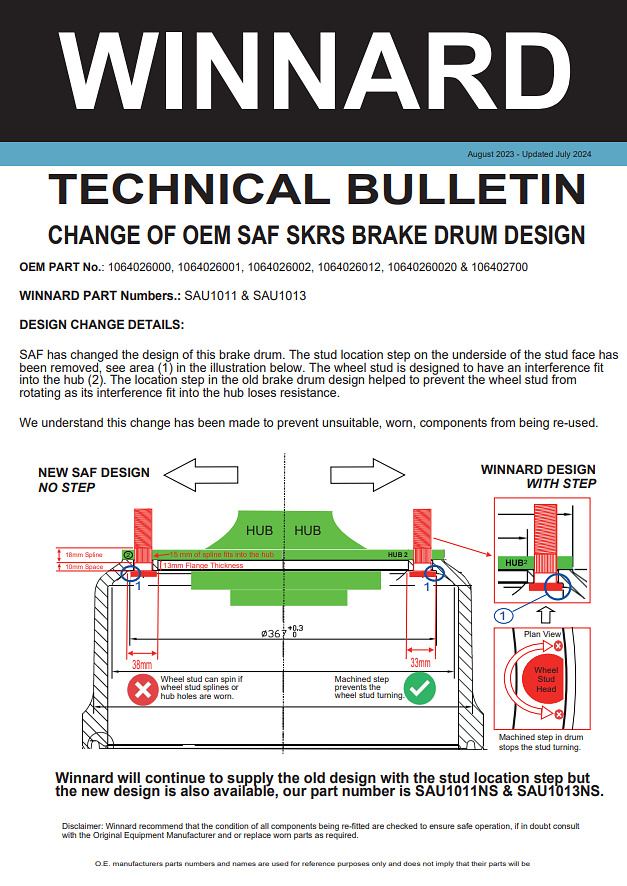

- Machined step under the stud flange for wheel stud location, back -plate groove on base of drum. See Technical Bulletin about the New SAF design which does not have this machined step. Applies to SAU1011 and SAU1013.
Specification
| mm | inch | |
|---|---|---|
| (A) DIAMETER: | 420 | 16.54 |
| (B) TREAD DEPTH: | 213 | 8.39 |
| (C) REGISTER: | 300 | 11.81 |
| (D) HEIGHT: | 256 | 10.08 |
| (E) PCD: | 335 | 13.19 |
| (F) STUD HOLE DIAMETER: | 23 | 0.91 |
| (F) STUD HOLE QTY: | 10 | |
| WEIGHT | 51.40 kg |
Cross References
| OEM: | 01064027000, 01064027001, 01064027010, Y011002329, Y011002369 |
| 3G: | BD4040 |
| ALT REF: | 271-SU-00, 31288622500, 50567, 5910, BSA45, BSA45A, DNH-HD104, T2500.11 |
| APEC: | DRM7024 |
| ATP: | 133-0115-20 |
| BORG & BECK: | BBR32553 |
| DT: | 10.33204 |
| JURID: | 323161J |
| MERITOR: | MBD1039, MDB1039 |
| NAPA: | NTDR7024 |
| PE: | 066.440-00 |
| ROADLINK: | 2095 |
| SAM REV: | SAU1675 |
| SBP: | 01-SA005 |
| TEMPLIN: | 03.090.2500.110 |
| TRUCKTEC: | BR1024 |
| TTC: | 60765, 60765, 60765, 80815 |
| UNIVERSAL: | A5729 |
