Notes

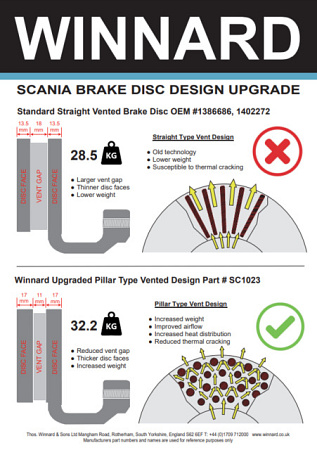

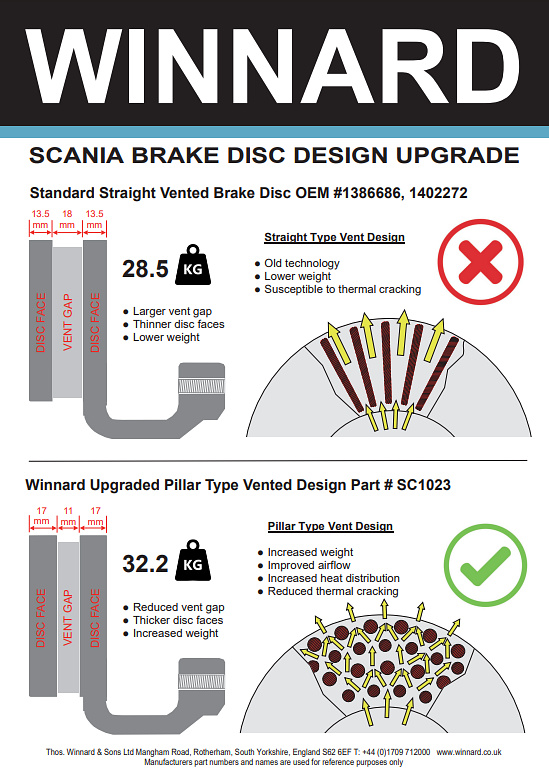

New DESIGN. Pillar type venting. Thicker disc faces 17mm. Increased weight 32 kg

Specification

	mm	inch
(A) DIAMETER:	430	16.93
(B) MINIMUM THICKNESS:	37	1.46
(B) THICKNESS:	45	1.77
(C) REGISTER:	208	8.19
(D) HEIGHT:	131	5.16
(E) PCD:	237	9.33
(F) STUD HOLE DIAMETER:	M16
(F) STUD HOLE QTY:	10
BOX HEIGHT:	151	5.94
BOX LENGTH:	450	17.72
BOX WIDTH:	450	17.72
ECE R90:	APPROVED
WEIGHT	32.00 kg

Cross References

BARCODE GTIN-13:	5055677302693
OEM:	- SOLID VERSION AVAILABLE SC1023S, 1367735, 1386686, 1402272, 1852817, 1889543, 2297026 Scania kit part number 2 discs, 2447408 Scania kit part number 2 discs + pads, SC1889543
3G:	AD1305
ADL:	1043993, DP044219, DP044231
ALT REF:	12610000, 31690000100, 31690000190, 360204200165, 40-43909, 40F3319, 40F3319, 40F3323, 40F3323, 43909, 481116, 50597, 55002A, 83137792, 955798, 999240632, CF104561, CWD903, K000510, K000810, NCA80890, PL12795, SC1100, T014-SC-00, WDR553
AMIPART:	AM8056
APEC:	DSK7006
ATP:	115-0024-19
BORG & BECK:	BBD32642
BREMBO:	09.A995.10
CEI:	215.043, 215043
COMLINE:	ADC9004V
DON:	CVD553
DT:	1.18760, 1.35035
EBS:	28.29.1000
EFI:	ECD085
EUROPART:	2090 430 001
FEBI:	10005
FERODO:	FCR170A
FRAS-LE:	FHDI00013
GRANNING:	55002
GRANTEX:	251.44.0001, 251440001
ISOTECH:	501023V
JURATEK:	SCA100
JURID:	567500J
MERITOR:	MBR5025
NAPA:	NTBD7006, NTBD7101
PE:	126 100 60A, 126.100-00, 126.100-00A, 126.100-60A, 12610000
PROLEAD:	481116
REMSA:	NCA1047.20
ROADLINK:	3106
SAM REV:	2831SV
SAUER:	S0790627200
SBP:	02-SC001
SDC:	TP579
TEMPLIN:	03.110.3021.000
TEXTAR:	93088300
TODD:	8064050
TRP:	1962327
TRUCKTEC:	BD1006
TRW:	DF5014S
TTC:	80162
UNIVERSAL:	A9650, KLTE0022
VALEO:	187070
ZIMMERMANN:	510.6731.00
