⇠ FD1064
Notes

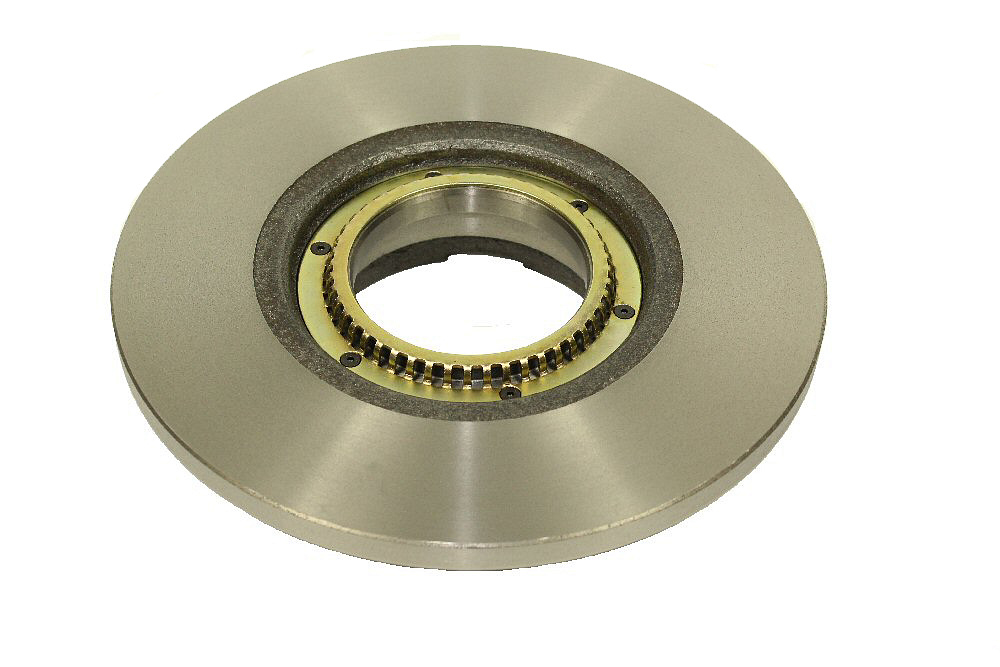

- SUPPLIED WITH WINNARD DESIGNED SCREW ON ABS RING - THERE IS SOME MARKET CONFUSION ON CROSS REFERENCES WITH FD1064 - TO ENSURE THE CORRECT DISC PLEASE CHECK THE DISCS DIAMETER - FD1056 is 288mm - FD1064 is 308mm
Specification
| mm | inch | |
|---|---|---|
| (A) DIAMETER: | 308 | 12.13 |
| (B) MINIMUM THICKNESS: | 13 | 0.51 |
| (B) THICKNESS: | 16 | 0.63 |
| (C) REGISTER: | 119.85 | 4.72 |
| (D) HEIGHT: | 69 | 2.72 |
| (E) PCD: | 160 | 6.30 |
| (F) STUD HOLE DIAMETER: | M10 | |
| (F) STUD HOLE QTY: | 5 | |
| BOX HEIGHT: | 89 | 3.50 |
| BOX LENGTH: | 328 | 12.91 |
| BOX WIDTH: | 328 | 12.91 |
| WEIGHT | 9.80 kg |
Cross References
| BARCODE GTIN-13: | 5055677310018 |
| OEM: | 1764282, 1783910, 2040064, BK21-2A097-AA, BK21-2A097-AB, BK21-2A097-EA, BK21-2A097-EB, BK212A097AA, BK212A097AB, BK212A097EA, BK212A097EB |
| ABS: | 18307 |
| APEC: | DSK2978 |
| BENDIX: | 522260 Check Diameter |
| BLUE PRINT: | ADBP430019, ADF124349 |
| BOSCH: | 0986479F62 |
| BRECK: | BR073SA100 |
| BREMBO: | 08C24120, 08E026.20 |
| COMLINE: | ADC1264, AND6629 |
| DELPHI: | BG9198C |
| FEBI: | 171451 |
| FERODO: | DDF2471 |
| HELLA: | 8DD 355 126 591, 8DD 355 126-591 |
| JURATEK: | FOR204 |
| JURID: | 563125J |
| MINTEX: | MDC2692 |
| TEXTAR: | 92292603 |
| TRW: | DF6963S |
| ZIMMERMANN: | 250137020 |
