⇠ DA1058
Attachments
Notes

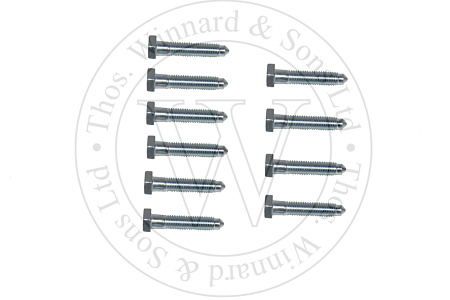

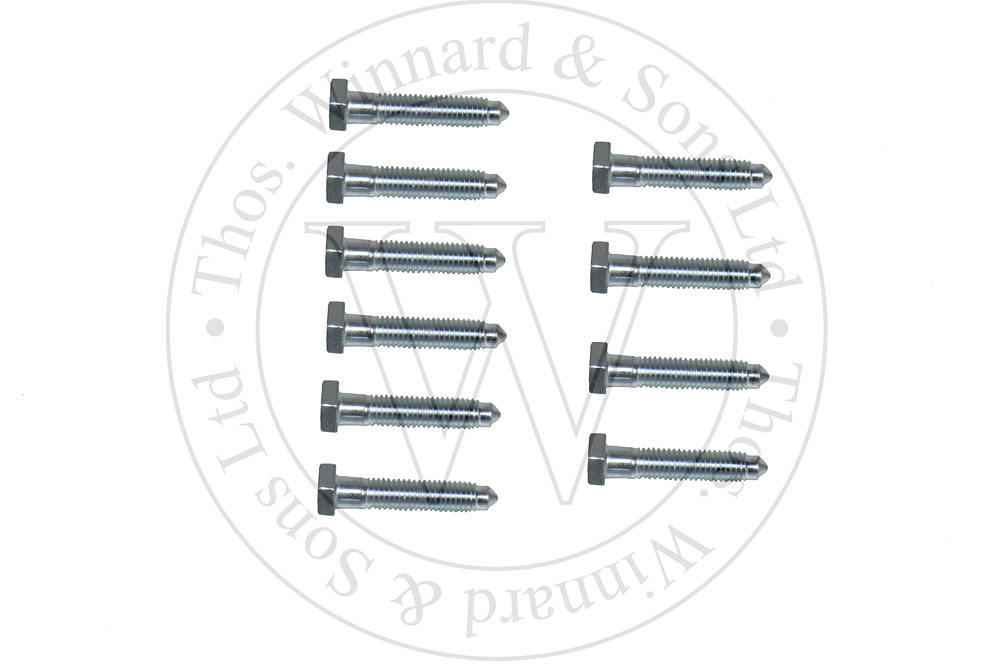

- Bolt Torque Setting 20 Nm

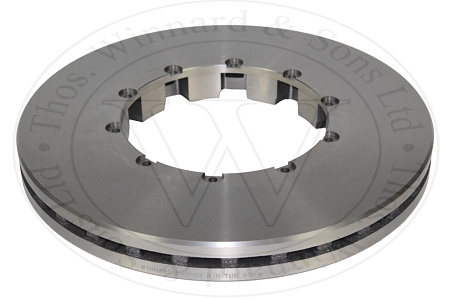

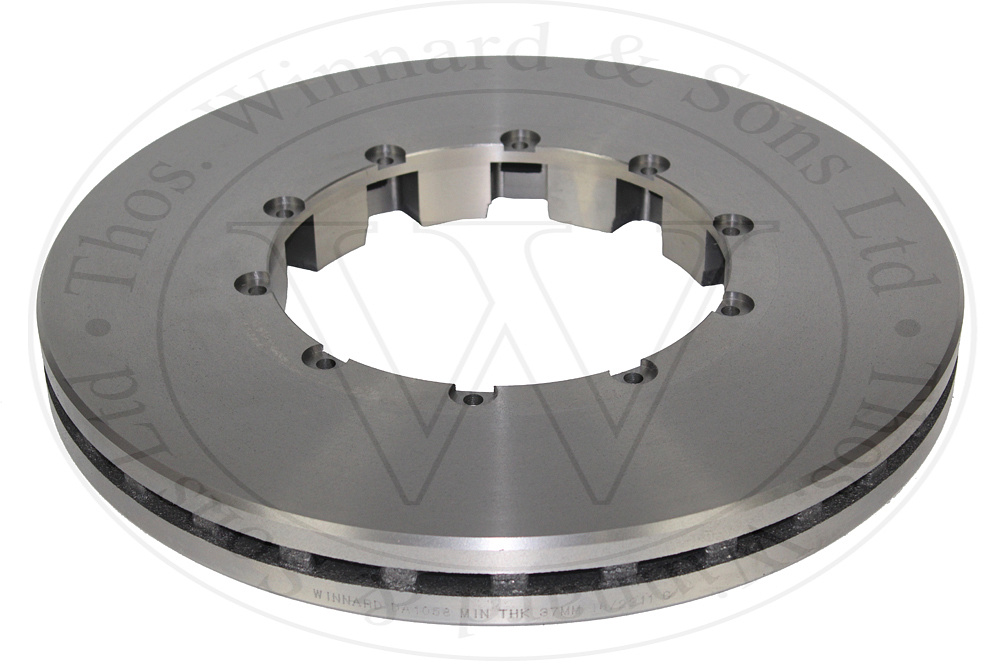

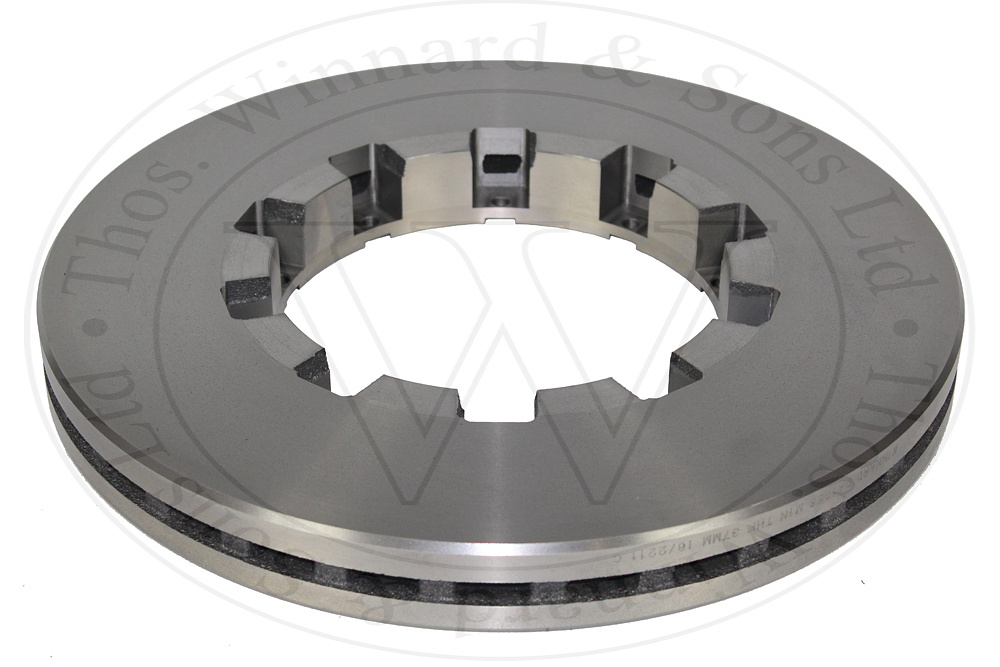

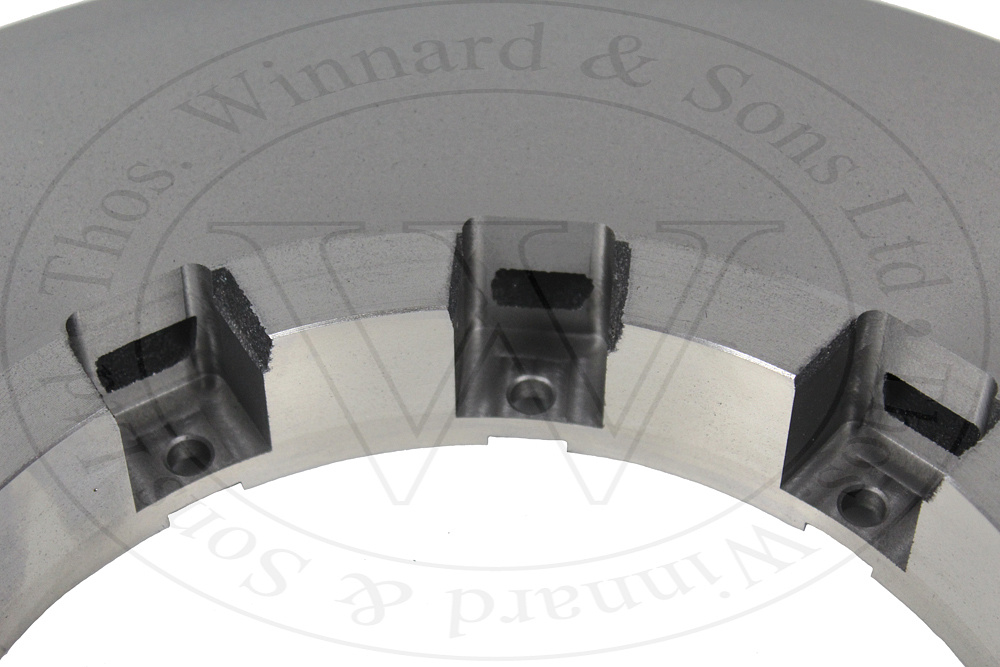

Specification
| mm | inch | |
|---|---|---|
| (A) DIAMETER: | 432 | 17.01 |
| (B) MINIMUM THICKNESS: | 37 | 1.46 |
| (B) THICKNESS: | 45 | 1.77 |
| (C) REGISTER: | 217 | 8.54 |
| (D) HEIGHT: | 45 | 1.77 |
| (E) PCD: | 230 | 9.06 |
| (F) STUD HOLE DIAMETER: | 8.5 | 0.33 |
| (F) STUD HOLE QTY: | 10 | |
| BOX HEIGHT: | 65 | 2.56 |
| BOX LENGTH: | 452 | 17.80 |
| BOX WIDTH: | 452 | 17.80 |
| WEIGHT | 26.80 kg |
Cross References
| BARCODE GTIN-13: | 5055677305632 |
| OEM: | - ALSO AVAILABLE DA1058S SOLID & DA1059 WITH SPACERS, 1387439, 1640560, 1640561, 1690788 OE BOLT KIT, 1691355, 1726138, 1739542, 1783346, 1794847, 1812563, 1812582, II39541F, K012739, K034248K50, K034249K50, K036972, Z0009911 |
| 3G: | AD1001 |
| ABEX: | ADR180456 |
| ALT REF: | 14004, 14020, 1735006, 31629000104, 35F3301, 360204200121, 51156, CDR1049, K034248, NCA1685 |
| AMIPART: | AM8053 |
| APEC: | DSK7002 |
| ATP: | 115-0066-19 |
| BERAL: | BCR225A |
| BORG & BECK: | BBD32641, BBD33036 |
| CEI: | 215.081, 215.213, 215081, 215213 |
| COMLINE: | ADC9001V |
| CONMET: | 10023879, 10025445 |
| DAYTON: | 125084 |
| DON: | CVD585 |
| DT: | 5.21221SP, 5.21221SP2 |
| DURABRAKE: | 76694 |
| EBS: | 28.21.1000 |
| EUROPART: | 6001 387 439 |
| FEBI: | 104292 |
| FERODO: | FCR225A |
| FITTING KIT REFERENCES: | 1393560, 1393561, 1691889, 1693978 |
| FRAS-LE: | FHDI00030A |
| GRANNING: | 14020, 14020A |
| GRANTEX: | 251.16.0006, 251.16.0011, 251.16.Z006, 251.16.ZV06, 251160006, 251160011, 25116Z006, 25116ZV06 |
| ISOTECH: | 401058V |
| JURATEK: | DAF111/A, DAF111/B, DAF111/C, DAF111/D, DAF111A, DAF111B, DAF111C, DAF111D |
| JURID: | 569157J |
| MERITOR: | M44D76992 |
| MIDLAND: | MPBR76694 |
| NAPA: | NTBD7002 |
| PE: | 106 203 80A, 106.203-00A, 106.203-80A, 10620300A, 10620380A |
| PROLEAD: | 513589 |
| REPLACES: | DA1043, DA1056, DA1056S, KB1001 |
| ROADLINK: | 2019, 3195 |
| SAM REV: | 575DA |
| SBP: | 02-DA001, 02-DA002 |
| TEMPLIN: | 03.110.0275.801, 031100275801 |
| TEXTAR: | 93145600, 93145611 |
| TRP: | 1542600 |
| TRUCKTEC: | BD1002 |
| TRW: | DF1104 |
| TTC: | 61764 |
| UNIVERSAL: | KLTE0162W, KLTEEXP0162KIT |
