⇠ VL/88/2
Specification
| mm | inch | |
|---|---|---|
| (A) DIAMETER: | 410 | 16.14 |
| VL/88/2 INTERNAL RADIUS: | 200 | 7.87 |
| VL/88/2 LENGTH: | 192 | 7.56 |

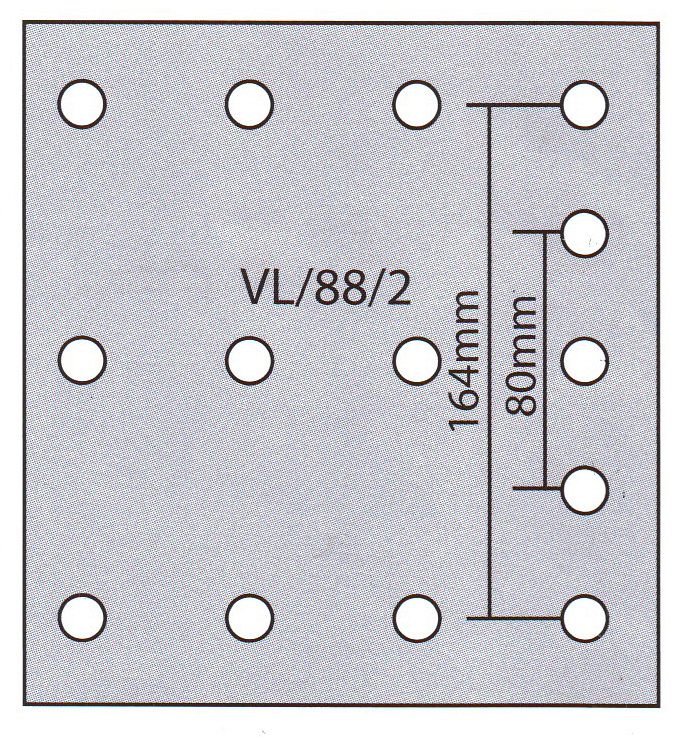

| VL/88/2 No. OF RIVETS: | 112 | 4.41 |
| VL/88/2 QUANTITY PER SET: | 8 | 0.31 |
| VL/88/2 RIVET SIZE: | L9 or L9.5 Recommended but L10 can be used. | |
| VL/88/2 THICKNESS: | 18.71/13.68 | |
| VL/88/2 WIDTH: | 200 | 7.87 |
| WEIGHT | 9.25 kg |
Cross References
| OEM: | - 410 x 200 BRAKE LINING, 03095169, 03095170, 03095178, 03095180, 03095189, 1522138, 1694361, 21534385, 21534385, 21534398, 2164091958, 270520, 270836, 2708361, 270837, 2708370, 2708378, 270942, 2709426, 2709434, 270976, 2709765, 2709773, 2759975, 3090349, 3090350, 3091458, 3093259, 3093260, 3093263, 3093264, 3095169, 3095170, 3095179, 3095180, 3095189, 3097275, 3097278, 5001868089, 5001868090, 5006015979, 68371534NQU, 7421534386, 7421534386, 7421534399, 7424468191, 7485013110, 85105383, 892.00.34.0825 |
| ABEX: | B2755, B4755, B6754 |
| ALT REF: | 1907118300016278, VL 88/2, VL 88/2E |
| DT: | 2.94056, 2.94057 |
| FERODO: | K19071.0, K19071.1 |
| JURID: | 1907101070 |
| TEXTAR: | 1907102, 1907109 |
| TRP: | 1522138 |
| WVA: | 19071, 19939 |
