WP174S2

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Login | Register

Notes

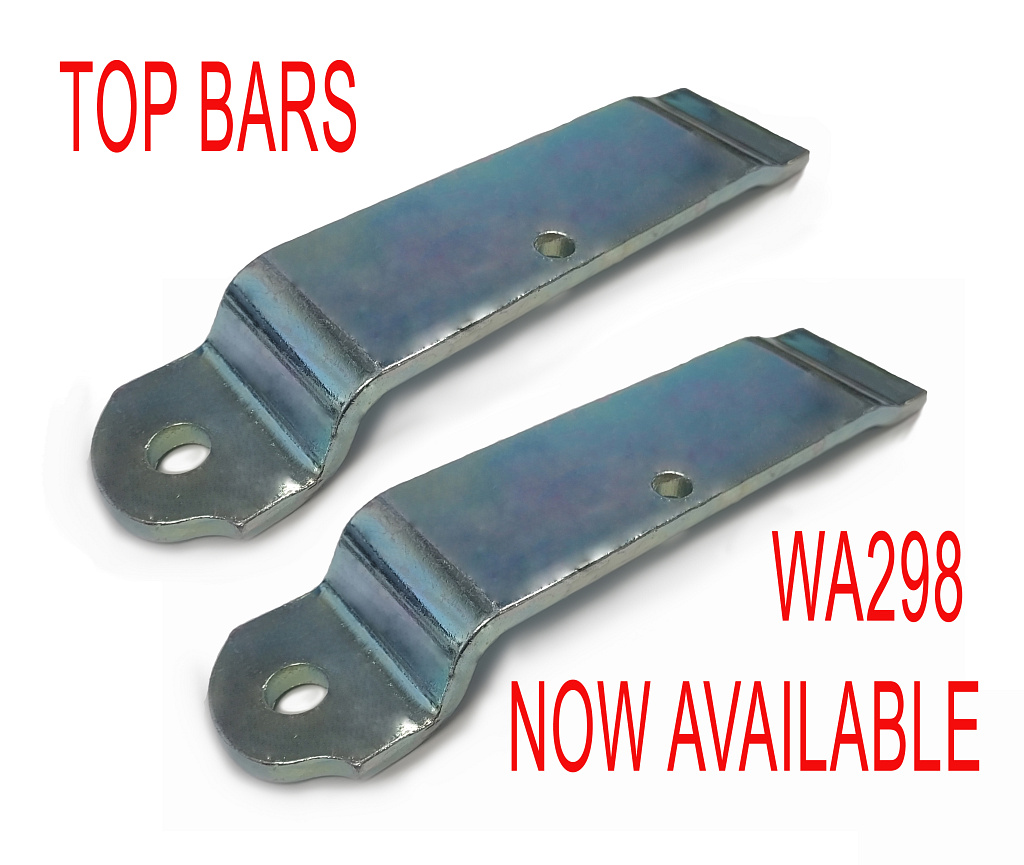

  • Our S2 material is designed to work at high operating temperatures and is therefore suited to be fitted with applications using SOLID brake discs. Supplied with WA251 Kit, WA298 top bars are also available.

Specification

mm inch
BOX HEIGHT: 68 2.68
BOX LENGTH: 273 10.75
BOX WIDTH: 250 9.84
HEIGHT: 107 4.21
LENGTH: 250 9.84
THICKNESS: 29 1.14
WEIGHT 10.60 kg

Cross References

BARCODE GTIN-13: 5055677308565

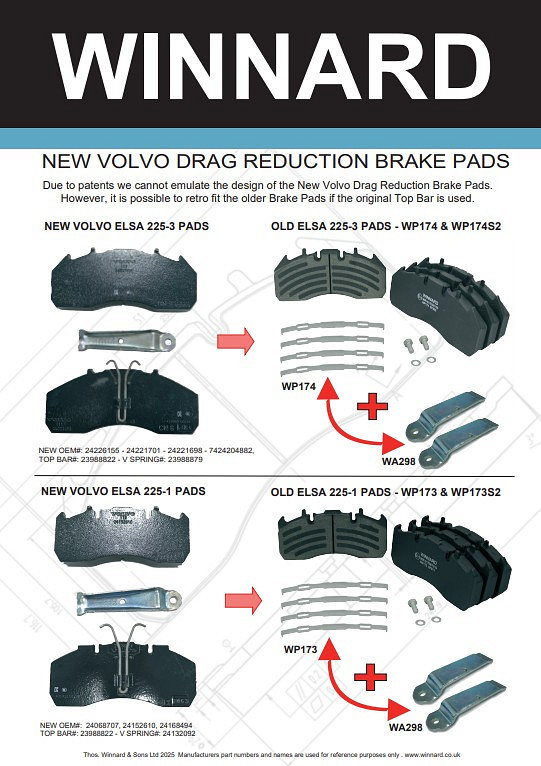

OEM: 13046040372, 147619192, 20526568, 20566412, 20568711, 20568714, 21024701, 21024702, 21352570, 21488185, 21496550, 21559994, 22179301, 23149532, 24226156, 24226156, 5001864363, 5001864364, 5007864363, 571479, 629740, 68325799, 7421399929, 7421399929, 7421488188, 7421496555, 7422921057, 7422921064, 7423149533, 7424204887, CAN REPLACE THE FOLLOWING NUMBERS IF THE TOP BAR WA298 IS USED: 24226155 - 24221701 - 24221698 - 7424204882 - 24204903, NEW PAD SPRING KIT 24169874, NEW V SPRING 23988879
3G: AD7001, AD9520
ABEX: G6985FE
ALT REF: 151831, 1525983, 2917409560, 2921929004145624, 541724, 571479, 629740, 85109894, 882245, BP842, CF104544, EKBP.174, ESD1708, RCV1855
AMIPART: AM8010
BRAKE SYSTEM: Meritor ELSA 225-3
BREMSKERL USA: 80480006
DON: CVP101K
DT: 2.94095, 294095, 6.95110
DURON: DCV1855BFE, DCV1989BFE, DCV4378BFE
EBS: EKBP.174
FEBI: 16690, 16778
FERODO: FCV1855BFE, FCV1989BFE, FCV4115BFE
FMSI: 8931 D1708, 8931-D1708
FRAS-LE: PD/196-K019-CV, PD/196-K019-HD
JURATEK: JCP006, JCP2006, SNY3006, SYN2006
KNORR BREMSE : K218193N50
LUMAG: 291740090100
MERITOR: KIT2252HBM7070, KIT2252HBMA703, KIT2252HBMA9500, KIT2252HVBP, MDP3174K, MDP5101, MDP5104, MDP5115, MDP5119, MPBD1708CV, MPBD1708HD
PROVIA: 340 902 221 2
ROADLINK: RCV1855
SAMPA: 096.620-01
TEXTAR: 2917401, 2917402, 2917403, 2917429224T7400, 2917429224T7600, 29174T3032, 2927301
TRP: 1521914, 1524600, 1525819, 1527661, 1962267, 1962459, 9503903
TRW: GDB5096
TTC: TCV1989
UNIVERSAL: KLTE0225R
VALEO: 882245, 882246
WVA: 29174, 29204, 29218, 29226, 29273
