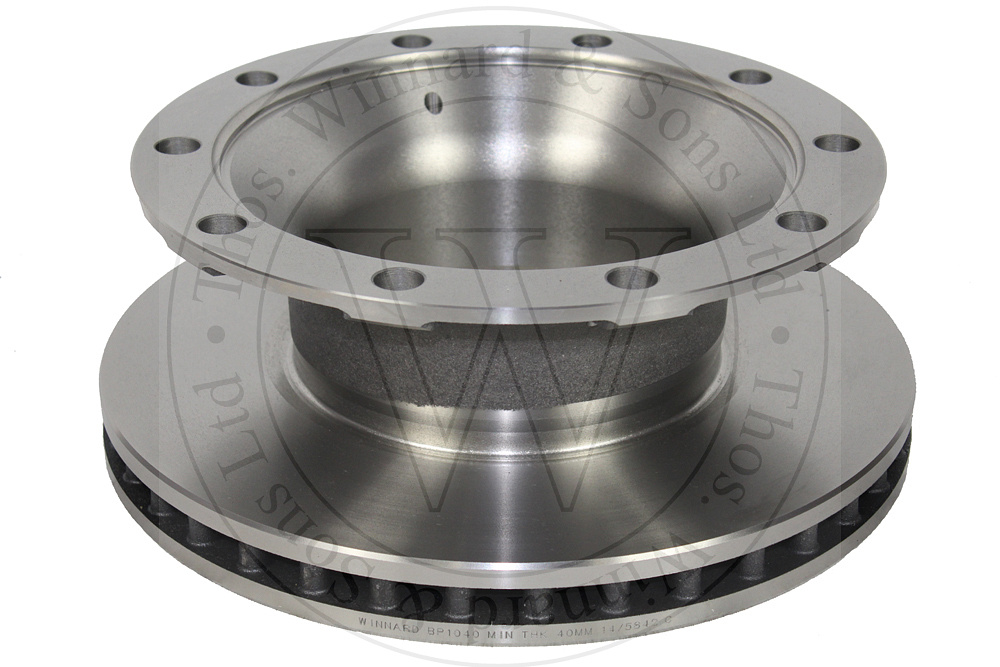

⇠ BP1040

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Notes

BP1022 has now been replaced by BP1040

Specification

	mm	inch
(A) DIAMETER:	430	16.93
(B) MINIMUM THICKNESS:	40	1.57
(B) THICKNESS:	45	1.77
(C) REGISTER:	n/a
(D) HEIGHT:	160	6.30
(E) PCD:	335	13.19
(F) STUD HOLE DIAMETER:	23	0.91
(F) STUD HOLE QTY:	10
BOX HEIGHT:	180	7.09
BOX LENGTH:	450	17.72
BOX WIDTH:	450	17.72
ECE R90:	APPROVED
WEIGHT	35.20 kg

Cross References

BARCODE GTIN-13:	5055677300286
OEM:	9267021, BPW 03.088.34.0.50, BPW 03.088.34.05.7, BPW 03.088.35.03.0, BPW 03.088.35.05.0, BPW 03.088.35.05.7, BPW 03.088.35.05.8, BPW 03.088.35.12.0, BPW 0308834050, BPW 0308834057, BPW 0308835030, BPW 0308835037, BPW 0308835050, BPW 0308835057, BPW 0308835058, BPW 0308835120, BPW 0308835127, BPW 0908835057, BPW 0908835127, CF103925, KOGEL 6603952, KRONE 550006055, KRONE 550018855, LECITRAILER 05840014 (CHECK DISC DIMENSIONS), RENAULT 5021200841, SCHMITZ 017586, ZF.99049-0205
3G:	AD0045
ALT REF:	09847210, 125669000, 1358B, 1358B, 31788000800, 40-43832, 40-43833, 43832, 490205, 50828, 77700893, 80963, 9507058, 955899, 982001271, 990320924, BPW600100, CBD29122V, CDR1042, CF104722, CF104846, CWD1029, DF3000801, II379830061, NCA73340, PL12809, TTBR1324
APEC:	DSK7003
ATP:	115-0111-19
BERAL:	BCR176A, BCR222A
BORG & BECK:	BBD32620
BRAKE SYSTEM:	TSB4309, TSB4312
BREMBO:	09.8472.10
CEI:	215.044, 215044
COMLINE:	ADC9034V
DON:	CVD616
DT:	10.14105
EBS:	28.20.1000
FEBI:	12446
FERODO:	FCR176A, FCR222A
FRAS-LE:	FHDI00031
GRANNING:	50178, 50392
GRANTEX:	251.50.0006, 251.50.0010, 251500006, 251500010
ISOTECH:	921040V
JURATEK:	BP106, BP112, BPW106, BPW112
JURID:	569020J, 569141J
KNORR BREMSE:	K050085
KRONE:	550025945
MERITOR:	MBR5048, MBR5105
NAPA:	NTBD7003
NEWTON:	N1004756
PE:	046.372-00A, 046.384-00A, 04637200A, 04638400A
PROLEAD:	490205
REPLACES:	BP1022, SAE1001
ROADLINK:	3095
SAM REV:	1251B, 1358B
SAMPA:	070.270
SAUER:	S0790203000, S0790205000
SBP:	02-BP003
SDC:	RGA291117, RGA291120
TEMPLIN:	03.110.0251.020, 03.110.0251.070
TEXTAR:	93127100
TODD:	8034205
TRP:	1526592 MERITOR, 1962289, 1964400 BPW, 1964827 TRP
TRUCKTEC:	BD1003
TRUCKTECHNIC:	TTBR1324
TRW:	DF5017S, DF5030S
TTC:	61855, 80307, 8336
UNIVERSAL:	KLTE0055, KLTE0149
VALEO:	187057
VRS:	ST10072971, ST10075286
ZIMMERMANN:	160.6001.00, 160.6010.00
