⇠ RN/102/103/1

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Specification

	mm	inch
DRUM DIAMETER:	360	14.17
RIVETS:	5x15 Fully Tubular 9 mm Head
RIVETS PER SET:	80	3.15

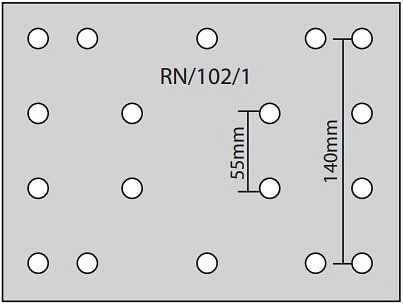

RN/102/1 HOLES:	18	0.71
RN/102/1 INTERNAL RADIUS:	247.1	9.73
RN/102/1 THICKNESS:	12.5/17.5/10.0

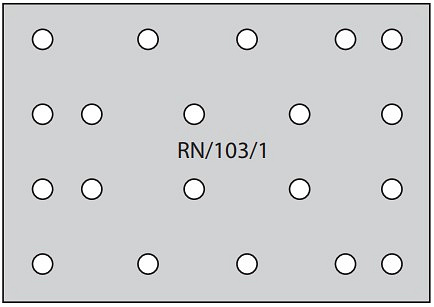

RN/103/1 HOLES:	22	0.87
RN/103/1 INTERNAL RADIUS:	333.6	13.13
RN/103/1 THICKNESS:	16.5	0.65
WIDTH:	170	6.69
WEIGHT	6.00 kg

Cross References

OEM:	5000288524, 5000288525, 5000815640, 5000815640, 5000822604, 5001825627, 5001825629, 5001859278, 5001865658
ABEX:	B2061, B4061
BERAL:	1925517506016273, KBL19255.0
FERODO:	K19255.0, K19255.0-F3537, K19255.1
JURID:	1925501230, 1925503270
TEXTAR:	1925501, 1925502
VALEO:	124097, 124098
WVA:	19255, 19259
