⇠ CW/4/2

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Notes

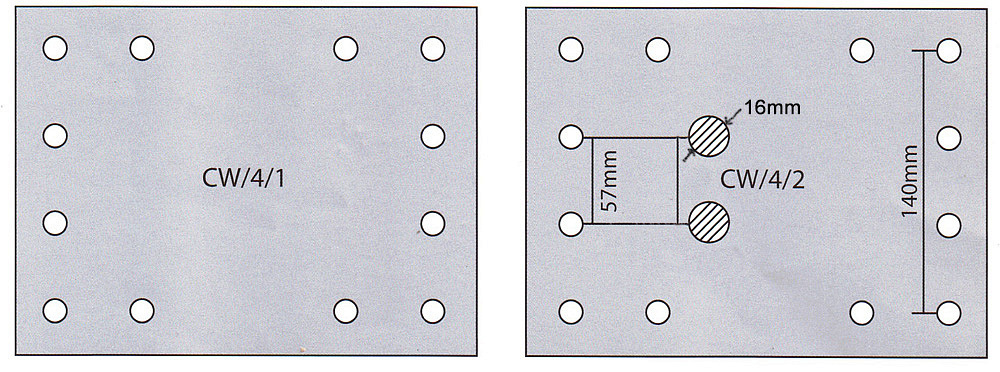

WITH 2x16 mm WEAR INDICATOR HOLES

Specification

	mm	inch
(A) DIAMETER:	381	15.00
CW/4/2 INTERNAL RADIUS:	184	7.24
CW/4/2 LENGTH:	207	8.15
CW/4/2 No. OF RIVETS:	96	3.78
CW/4/2 QUANTITY PER SET:	8	0.31
CW/4/2 RIVET SIZE:	L9
CW/4/2 THICKNESS:	19.08/13.7
CW/4/2 WIDTH:	178	7.01
WEIGHT	8.10 kg

Cross References

OEM:	1903480, 1903481, 1906033, 1906176, 1906177, 1906200, 1906241, 2711026, 2712495, 272724, 2991906, 2991907, 5001839115, 7485132401
ALT REF:	CW 4 2, CW 4/2
DT:	7.92428
TEXTAR:	1938402, 1938407, 1938414
WVA:	19384, 19385
