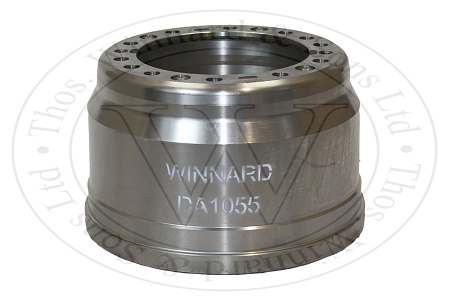

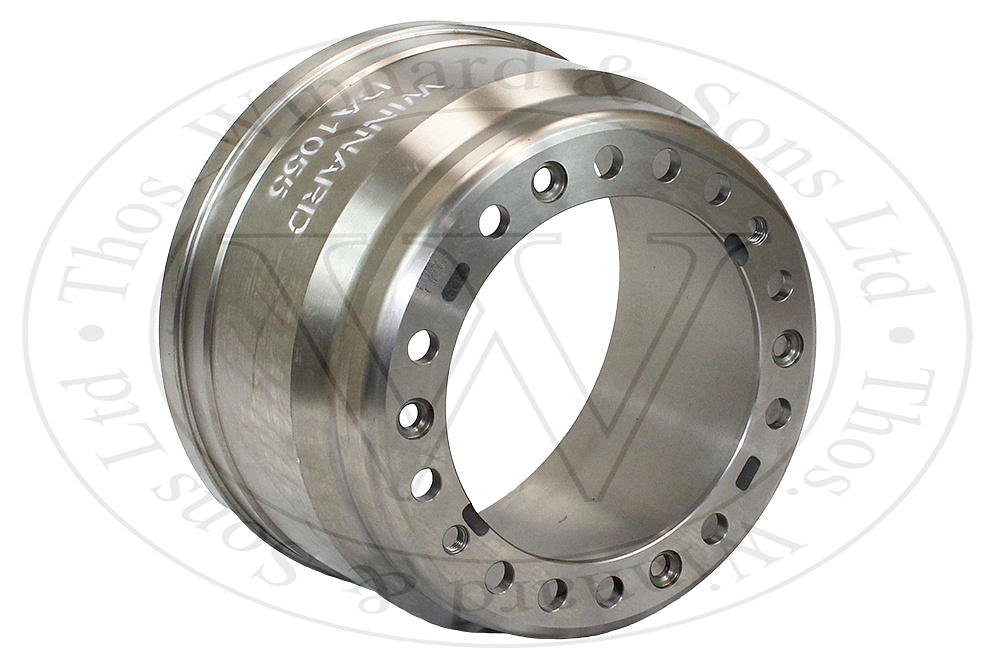

⇠ DA1055

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

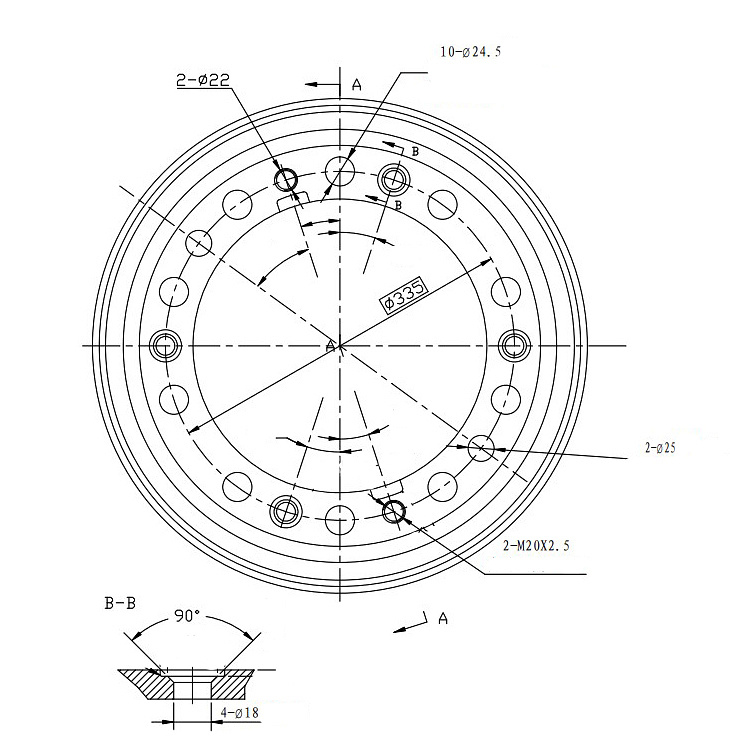

Specification

	mm	inch
(A) DIAMETER:	410	16.14
(B) TREAD DEPTH:	215	8.46
(C) REGISTER:	282	11.10
(D) HEIGHT:	294	11.57
(E) PCD:	335	13.19
(F) STUD HOLE DIAMETER:	24.5	0.96
(F) STUD HOLE QTY:	10
EXTRA HOLES:	4CS + 2x25 + 2xM20
WEIGHT	63.80 kg

Cross References

OEM:	1694338, 1694799
ALT REF:	DA2503
MERITOR:	3219Q5971, MBD5036
