WP132

Reduce the amount of time you spend searching for and ordering the parts your business needs. Use our online catalogue to search for parts by keyword, dimensions, cross-references, and vehicle applications.

Login | Register

Notes

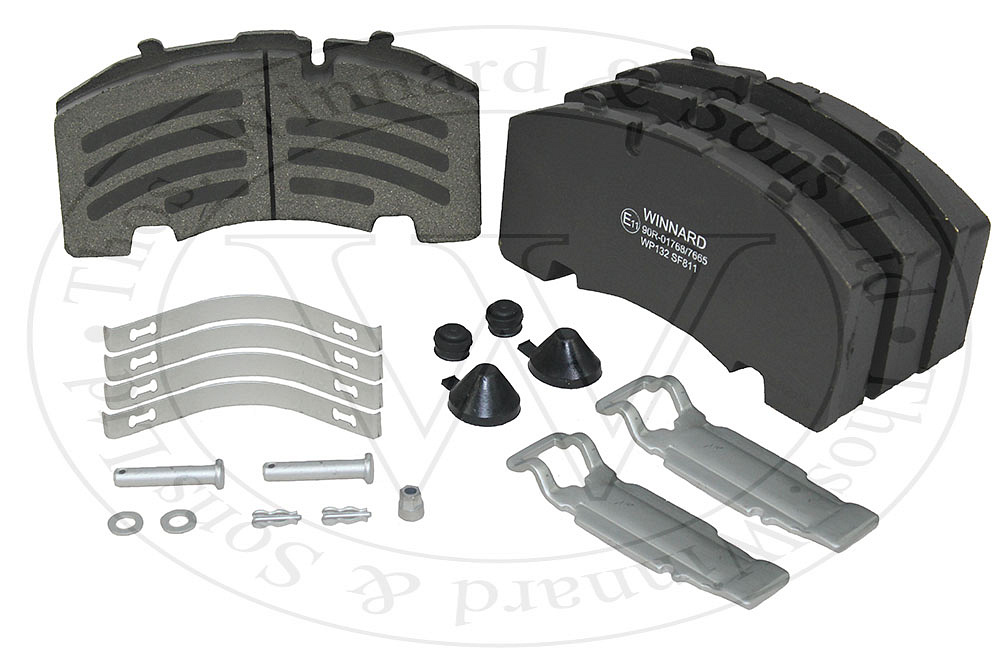

  • Winnard ECE R90 approved. 4 Identical pads. Supplied with WA231 & WA238 fitting kit. Dual keyway cut out. Also see WP158 for version without cut outs.

Specification

mm inch
BOX HEIGHT: 68 2.68
BOX LENGTH: 232 9.13
BOX WIDTH: 215 8.46
ECE R90: APPROVED
HEIGHT: 108 4.25
LENGTH: 210 8.27
THICKNESS: 30 1.18
WEIGHT 10.00 kg

Cross References

BARCODE GTIN-13: 5055677303171
OEM: 002627, 0044207020, 0305700850, 03057008500Z, 03057008502, 05.092.90.06.0, 05.092.90.08.0, 0501219679, 0509290060, 0509290080, 0509290230, 09.801.06.44.0, 09.801.06.950, 09.801.07.26.0, 09.801.07.260, 09.801.08.16.0, 0980106440, 0980106950, 0980107260, 0980108150, 0980108160, 0980108161, 1005316, 1008452, 1105625, 3.057.0085.00, 3057008500, 3057008501, 3057608500, 3057608501, 572915800, A0044207020, ADB22X, CAN REPLACE SCHMITZ 1161563, 1248266, 1401751, 1005316, 1008452, 1105625, JAE0250407020, JAE0250427020, K002627, K004169K50, K011471K50, K015947, K040231K64, K066608K50, KOGEL 6611155, LECITRAILER 05840046
3G: AD7002, AD8081, AD8601OEM
ABEX: G6936, G6939
ALT REF: 0305700851Z, 0509290080, 069.BR9.171, 1074.80, 107400, 129171J, 129171R, 1369.10, 151830, 183066, 2206520, 2915805390, 291583000414, 291713000414, 2917130004145754, 2917130014, 30570008500, 3057008500, 32702915890, 32702915891, 541720, 541720, 55917581, 55918181PRO, 600766, 77709995, 9507063, 960996, A11VI38, AD8080, ATD1369HD, BP106-003, C1028NA014, CF104714, ESD1369, ESD1369, F0917581, FO917581, G6990FE, K002245, K004169, K013745, PD/147-K FLE1749, PF9171, RM0414, S39-FF29, TCV3001, WDP094K
AMIPART: AM8011
APEC: PAD29308K
BRAKE SYSTEM: SB4309, SB4309T, SK7000
COMLINE: ACV062, ADB1369, CBP9062K
DON: CVP094, CVP094K, CVP103, CVP103K
DT: 10.14002, 4.90935
DURON: DCV1825B
EBS: EKBP.171, EKBP.271
EFI: EFC132
FERODO: FCV1657, FCV1657B, FCV1789, FCV1825, FCV1825B, FCV4416, FCV4461BFE, FCV4584B
FMSI: 8479 D1369
FRAS-LE: PD/172-K023-CV
HALDEX: 1911719010
ISOTECH: IBP5158
JOST: 1748114, JAE0250437020
JURATEK: JCP1002, JCP2002, SYN3002K
JURID: 2915805390, 2925705390
KNORR BREMSE : CAN REPLACE K066608K50, K002244, K060430, K06668K50, K109113, K126982K50
LUMAG: 291580090100
MERITOR: MDP1789, MDP3171K
PE: 086.321-00A, 086321-00A, 08632100A
PROVIA: 340 901 071 2
REMSA: JCA1074.80
REPLACES: WP132S2, WP158, WP158S2
ROADCREW: RBP0011
ROADLINK: RCV1657, RCV1825
TEMPLIN: 03.120.8700.431, 03.120.8700.781, 031208700431, 031208700781
TEXTAR: 098040191, 2915801, 2917104, 2917130014T3030, 2917130024T3030, 2917170, 2926901, 2927101, 2930801, 2930830014
TRP: 0880668, 1961736, 1961934, 1962418, 1962431, 1965955
TRW: GDB5093
TTC: TCV1002
UNIVERSAL: KLTE0148, KLTE0148R
VALEO: 882209
WABCO: 3409010712
WINKLER: 32708600700
WVA: 29171, 29194, 29257, 29269
